產品展示 Product

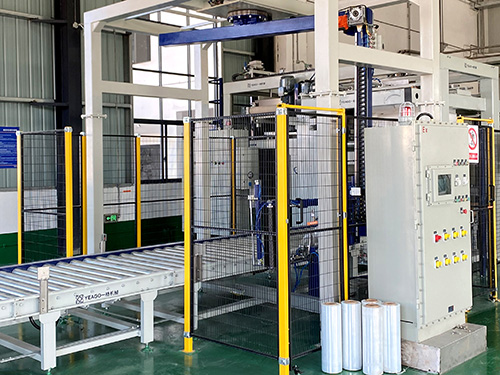

纏繞機

纏繞機

托盤貨物通過輸送線完全進入轉盤后，經光電開關感測，托盤輸送線停止輸送，轉盤開始啟動，通過光電開關進行纏繞，當纏繞和覆頂完畢后，設備自動停止，自動斷膜并把尾膜放到夾具上，自動將裹包好的貨物送出轉盤，通過儲存位到出貨位。

特點：

PLC可編程控制，纏繞層數及次數可在觸摸顯示器設置
光電開關自動感測貨物的高度
轉盤變頻調速 0-18rpm可調，包裝效率高
轉盤有緩啟動，緩?fù)Ｖ构δ?，變頻調速
回轉支撐傳動，性能更加穩定
膜架動力預拉伸機構，纏繞膜預拉伸可達250%，包裝更加美觀
膜架上升、下降速度分別可調，送膜速度可調
頂部及底部纏繞數分別可調
自動上斷膜機構

Winding machine

After the pallet goods enter the turntable completely through the conveyor line, the photoelectric switch senses, the pallet conveyor line stops conveying, the turntable begins to start, and the winding is wound by the photoelectric switch. When the winding and overlying are completed, the equipment automatically stops, then breaks the film and ends the tail. The film is placed on the fixture and the wrapped goods are automatically sent out of the turntable through the storage position to the shipping position.

Characteristics:

Controlled by PLC, the number of winding layers and the number of times can be set in the touch display.
Photoelectric switch automatically senses the height of the cargo.
Turntable and adjustable frequency can be 0-18 rpm, high packaging efficiency.
The turntable has functions including slow start, slow stop function and frequency control.
Slewing supports transmission, performance is more stable.
The film frame dynamic pre-stretching mechanism, the pre-stretching of the wrapping film can reach 250%, and the packaging is more beautiful.
The rise and fall speeds of the membrane frame are adjustable, and the film feeding speed is adjustable.
The top and bottom winding numbers are respectively adjustable.
Automatic upper membrane mechanism.
